7PIN SATA3 Cable 6Gbps SATA 3.0 Data Cable

• 6Gbps Data Rate: Full SATA 3.0 bandwidth, backward compatible with 3Gbps and 1.5Gbps
• Shielded Twisted-Pair (STP) Construction: Each signal pair individually foil-wrapped, plus overall braid
• 7-Pin Latching Connectors: Secure metal or plastic latches prevent accidental unplugging
• Low Profile (Right-Angle) Options: 180° straight, 90° down-angle, or 90° up-angle for tight routing
• Hot-Plug Supported: Pre-charge pin prevents arcing during live insertion
• Oxygen-Free Copper Conductors: Low impedance, consistent 100Ω differential matching
• UL Listed Wire: AWM style 2725 or similar, VW-1 flame rated

1. 6Gbps Certified – Not Just 'Compatible'
Many cheap SATA cables claim "6Gbps" but lack the shielding to maintain signal integrity at full speed. This cable is individually tested to SATA-IO guidelines, ensuring actual 600MB/s throughput. Benefit: No bottleneck for modern SSDS - sequential reads/writes at full controller speed.

2. Individual + Overall Shielding for Reliable 1m Runs
Achieving 6Gbps over 1m requires both per-pair foil and an outer braid to block crosstalk and EMI. This STP construction rejects noise from adjacent power cables, GPUS, and CPU VRM circuits. Evidence: Eye diagrams remain open at 1m length, per Tektronix DSA8300 sampling.

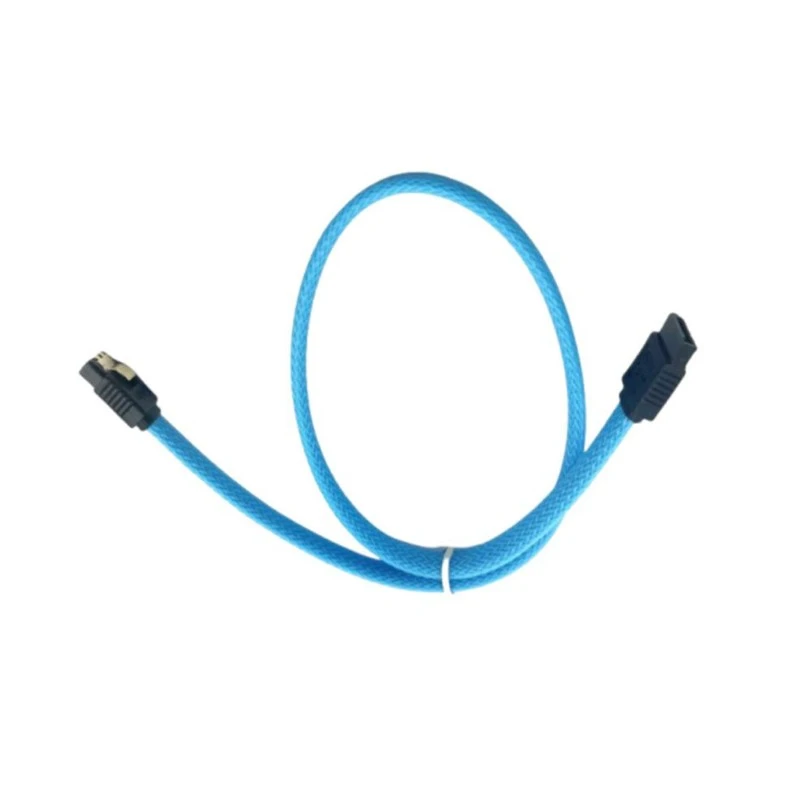

3. Flexible Round Cable vs Flat Ribbon
Flat ribbon SATA cables are stiff and force a fixed orientation. The round cable is more flexible, routes around corners, and uses smaller sleeves. Benefit: Easier cable management in compact cases without stressing connector latches.

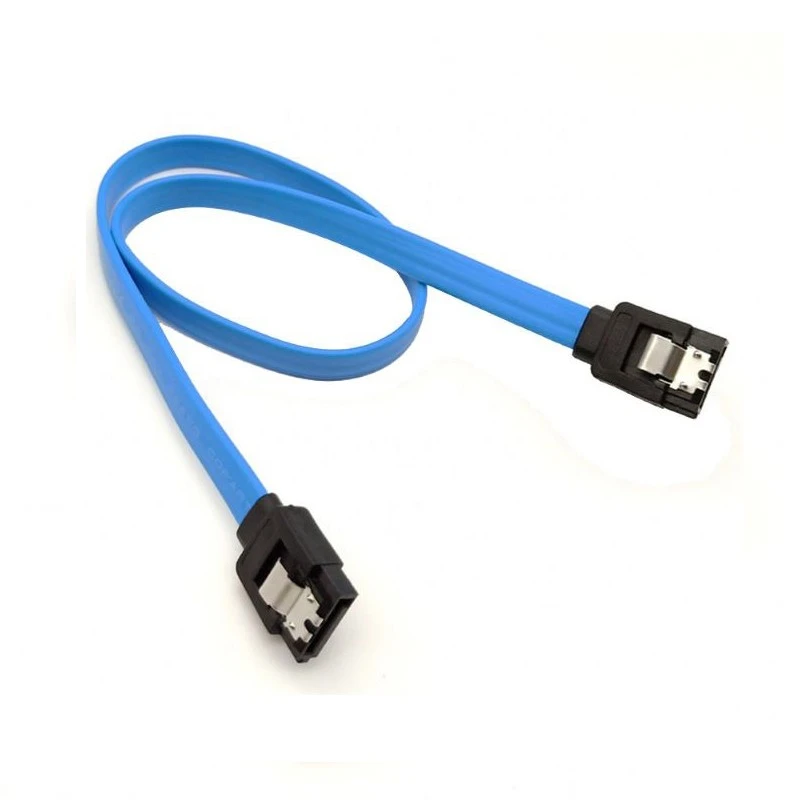

4. Secure Latching - Metal or Plastic, Your Choice
Plastic latches are more common but can wear out after 30-50 cycles. Metal spring latches (often blue or gray) maintain retention force over hundreds of cycles. Benefit: Choose metal for test benches or frequent drive swaps; plastic for fixed builds.

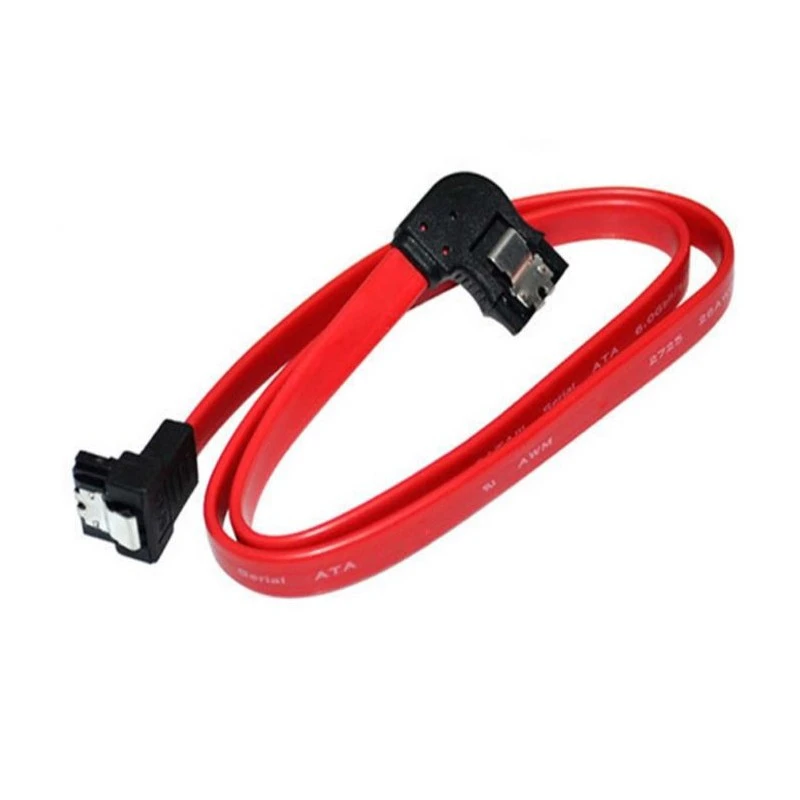

5. Low-Profile Right-Angle Versions for Dense Drive Cages
Straight SATA plugs can collide with adjacent drives in back-to-back cages. 90° down-angle connectors route the cable flat against the drive, reducing required clearance. Up-angle serves in reverse mounting scenarios.

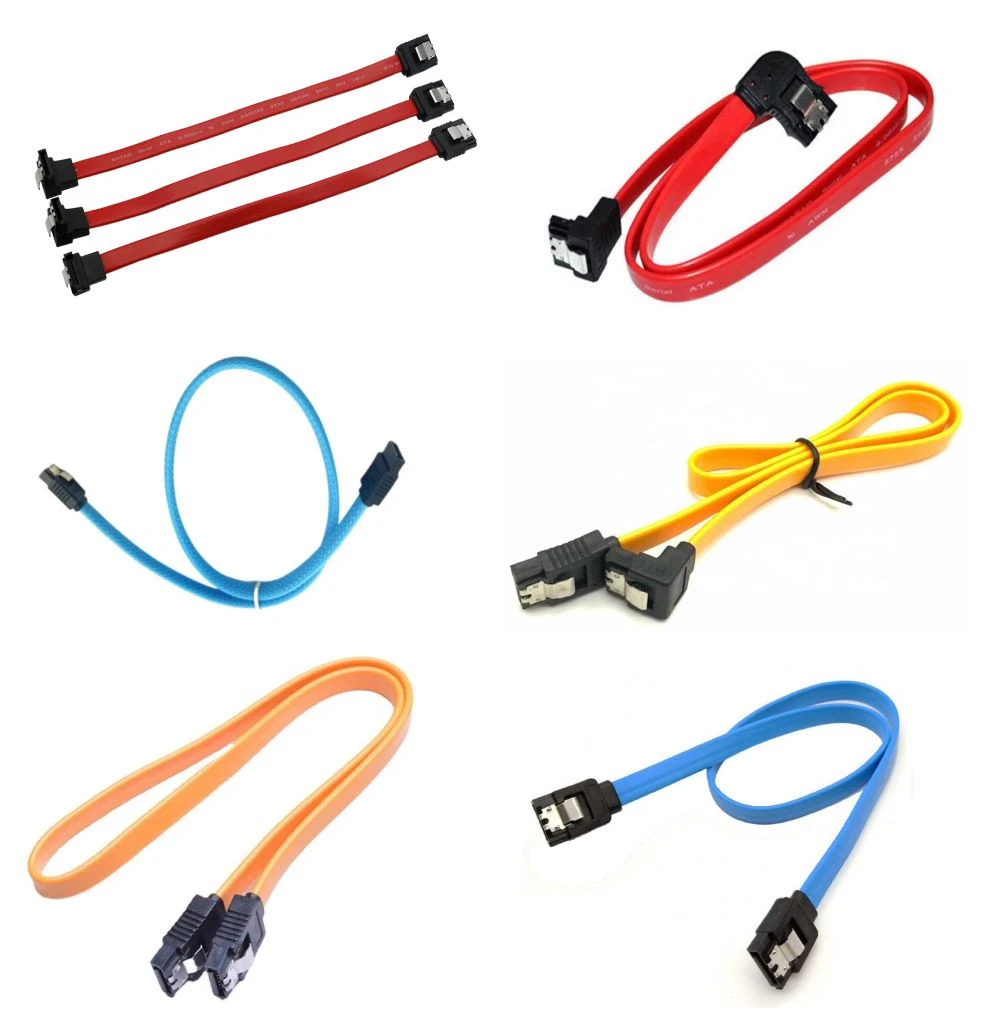

• Connector Orientation: Straight (180°), 90° down-angle, 90° up-angle, or left/right 90° (special)
• Latch Type: Metal spring (durable) or plastic clip (standard)
• Cable Type: Round (STP) or flat ribbon (budget builds)
• Length: 0.15m to 1.2m (copper); longer lengths via active repeater cables (not SATA standard)
• Shielding Level: STP (individual foil + braid) or FTP (foil only)
• Color: Black, blue, red, gray, yellow
• Packaging: Poly bag, ziplock, or retail clamshell
• Ferrites: Snap-on ferrite core for extreme EMI environments

• SATA 6Gbps SSD: Connect 2.5″ or M.2 to SATA adapter for full speed (550 MB/s+)
• 3.5″ HDD: Data connection for mechanical drives in desktop or NAS

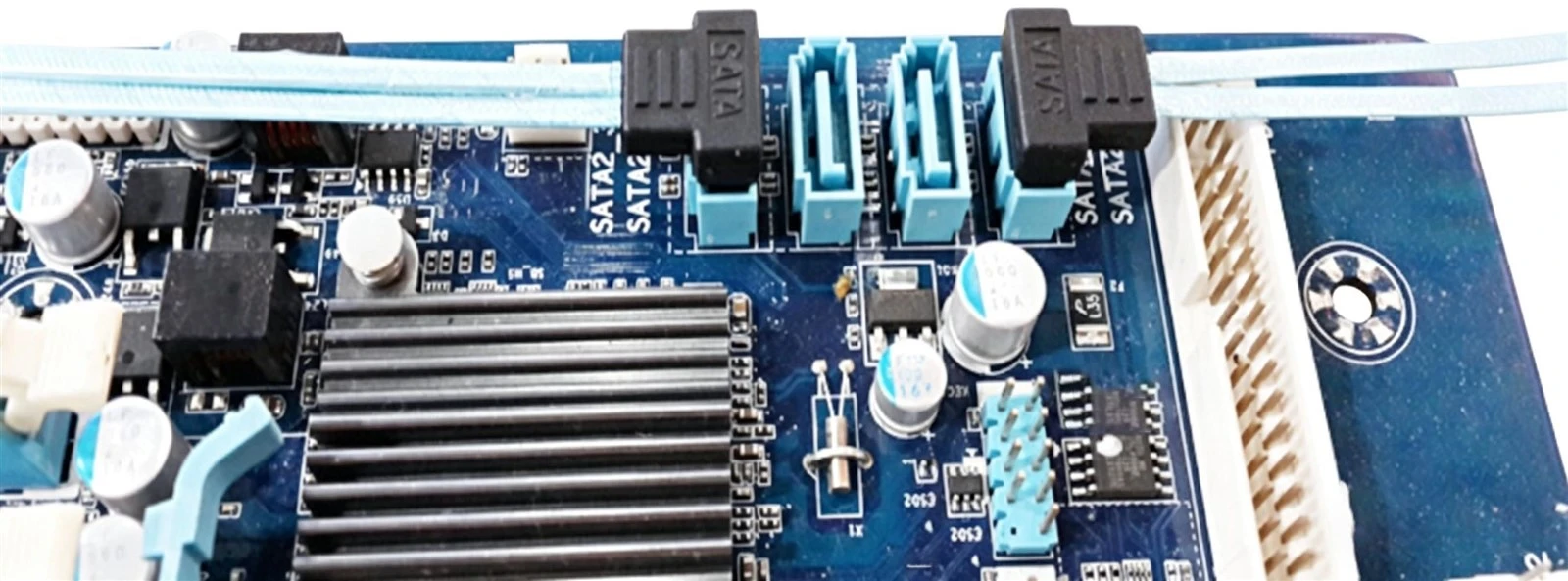

• Backplane to motherboard: Interconnect for hot-swap drive cages
• Optical drives: DVD/Blu-ray data connection (overkill for 6Gbps, fully compatible)
• Legacy system upgrade: Replace worn or loose SATA 1.5/3.0 cables
• External mounting (internal use only): Data for external drive dock internal tray

1.Mike R., PC Builder in Texas
"Samsung 870 EVO was getting only 280 MB/s on an old flat SATA cable. Swapped to this 0.5m round STP cable. CrystalDiskMark jumped to 560 MB/s sequential. 6Gbps handshake confirmed in BIOS. Good cable."

2.Jessie L., NAS Builder in Virginia
"Unraid server with 8 drives. Replaced all the bundled ribbon cables with these 0.6m round STP. Case airflow improved, and drive temperatures dropped 3°C. The metal latches click positively; no loose connections when swapping drives."

3.Carlos M., Data Recovery Tech in CA
"Portable test rig. Frequently swap SATA drives. The plastic latches on cheap cables wore out after a month. Switched to 0.5m locking metal latch. After 100+ cycles, still holds. Also the 90° down-angle fits my hot-swap sled perfectly."

4.Sarah K., SFF Builder in NY
"Fractal Terra case has very tight drive mounting. Straight SATA plugs collided with fans. Used 0.3m round cable with 90° down-angle. Slim cable routing, no kink. Handshake at 6Gbps no issue."

5.Dave P., Server Maintenance in FL
"HP ProLiant SATA backplane had marginal signal with the factory flat cables. Replaced with 1m STP round cables. S.M.A.R.T. reported no UDMA CRC errors after swap. Worth the premium for error-free long run."
