M.2 To PCIE 3.0 16X 180° Cable

Note: Cable length, connector locking type, and optional mounting brackets can be customized. Available in standard black or custom-colored ribbon.

1. PCIe 3.0 x16 to x4 Slot Configuration for Flexible Expansion
Features mechanical x16 slot with electrical x4 interface - allowing physical x16 cards to operate in systems with limited PCIe lanes. Perfect for GPU mining rigs, test benches, and custom PC builds where card compatibility matters more than full lane count.

2. 32 Gbps Total Bandwidth with 8 GT/s per Lane
Supports up to 32 Gbps total bandwidth (8 GT/s per lane) - meeting PCIe 3.0 standards for reliable high-speed data transmission. Delivers adequate bandwidth for graphics cards, storage controllers, network adapters, and other expansion cards.

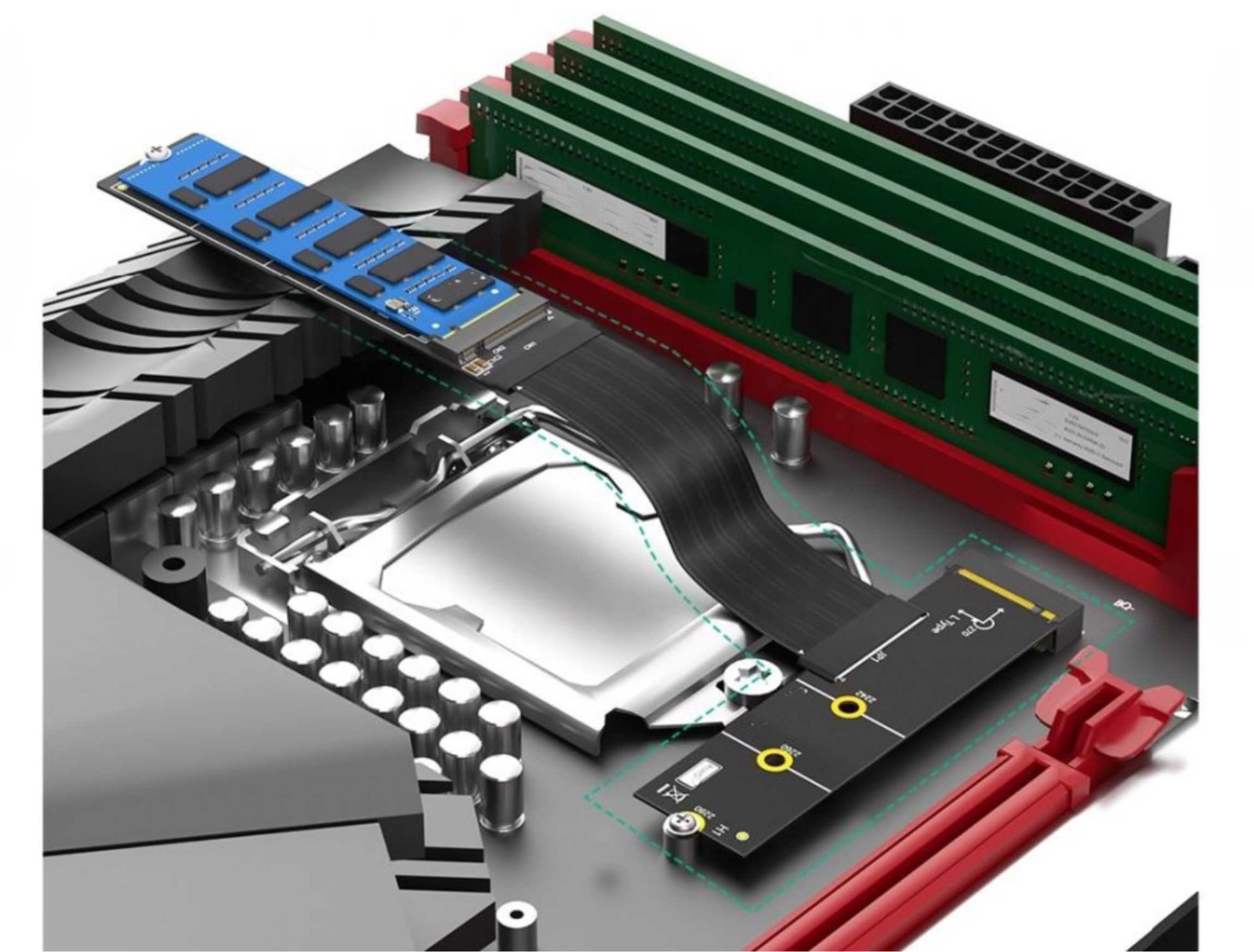

3. 180° Flat Ribbon Cable with TPE Jacket
Features 180° flexible high-density flat ribbon cable with TPE material - providing excellent flexibility for routing in tight chassis. The flat design allows easy cable management and reduces airflow obstruction in PC cases and server enclosures.

4. Customizable Lengths for Various Chassis Sizes
Standard length of 30 cm with optional lengths of 10 cm, 15 cm, or custom - allowing you to choose the perfect fit for your chassis layout. Ideal for personal computers, mining frames, and custom PC builds where card repositioning is required.

We provide tailored variations to fit different chassis and application layouts:

• Cable Length Options: 10cm (compact builds), 15cm (standard), 20cm (extended routing), or custom length
• Connector Orientation: Standard 180°, also available in 90° or straight versions
• Mounting Support: Optional metal or plastic mounting bracket for secure PCIE slot fixation
• Shielding Options: Standard unshielded or EMI-shielded ribbon with grounding layer
• Pin out Configuration: Standard M-Key (PCIE/NVME) or B+M Key (SATA/PCIE dual) support
• Cable Color: Black (default), gray, white, or custom color ribbon
• Packaging: Anti-static bag, retail box, or bulk OEM packaging

Modular Expansion for SpaceSensitive Professional Systems

• Industrial Manufacturing: Adds M.2based visionprocessing or motioncontrol cards to industrial PCs where PCIE slots are occupied or inaccessible; enables modular I/O expansion in machinecontrol cabinets.
• Aerial Photography / Drones: Integrates highspeed M.2 NVME storage or dedicated AIacceleration modules into drone flightcontroller carriers, allowing inflight data logging and realtime image preprocessing without consuming onboard M.2 slots.
• Medical Equipment: Provides a upgrade able interface for M.2based medicalimaging Coprocessors or patientdataacquisition modules in portable diagnostic devices, supporting fieldserviceable component replacement.
• Surveillance / Security: Enables additional M.2 videoanalytics or storagecontroller cards in NVRS and edgeAI servers, optimizing card placement for thermal management in densely populated chassis.

1)Experienced in interface connectors and cable assemblies, we can offer a wide range of standard production capabilities such as stamping, injection molding, prototype, connectors and cable assemblies, customized connectors and cable assemblies, and custom retail packaging.

2)Advancing interconnect technology. Our team can offer a world-class interconnect experience from initial consultation to final delivery to meet solutions for our customer's interconnect challenge, our personalized design and engineering package include CAD drawings, 3D models, prototypes and testing samples.

3)Building connections worldwide. We can provide a wide range of interconnect solutions in order to meet the needs of customers in many different types of markets,some of the most popular markets such as:high-end consumer electronics, data storage, set-top box, medical, home security,industrial, audio/video, desktop and mobile computer units.

4)High quality products and competitive pricing.

5)Exceeding expectations. our Quality Policy is Quality First, Customer First.

1. Maria Rodriguez, Mining Rig Operator
"We use these adapters to connect M.2 to PCIE risers in our mining frames. The 15cm length is perfect for cable management, and the 180° angle keeps the M.2 card parallel to the motherboard for better airflow."

2. David Kim, Industrial PC Integrator
"In our rugged embedded systems, space is critical. This cable lets us mount M.2 expansion modules away from the motherboard while maintaining a reliable PCIE connection. No signal integrity issues even in high-vibration environments."

3. Sophia Wang, Hardware Reviewer
"For testing multiple M.2 SSDS on different platforms, this adapter is invaluable. The 180° design makes it easy to connect without blocking adjacent slots, and performance is identical to native M.2 slots."

4. James Liu, Gaming PC Modder
"In my custom open-frame build, I used this cable to mount an M.2 WiFi/Bluetooth card vertically. The low-profile ribbon is nearly invisible, and the connection has been rock-solid for months."

• Payment method: Credit card or T/T (optional for large amounts). Western Union PayPal
• T/T payment generally supports 100% advance payment.
• Lead time: Normally in 5-10 working days after payment received.
• Sample policy: Samples are always available for each model for standard products.
• Samples can be ready in 3-5 working days once payment received.
• Shipping port: Shenzhen, China.
