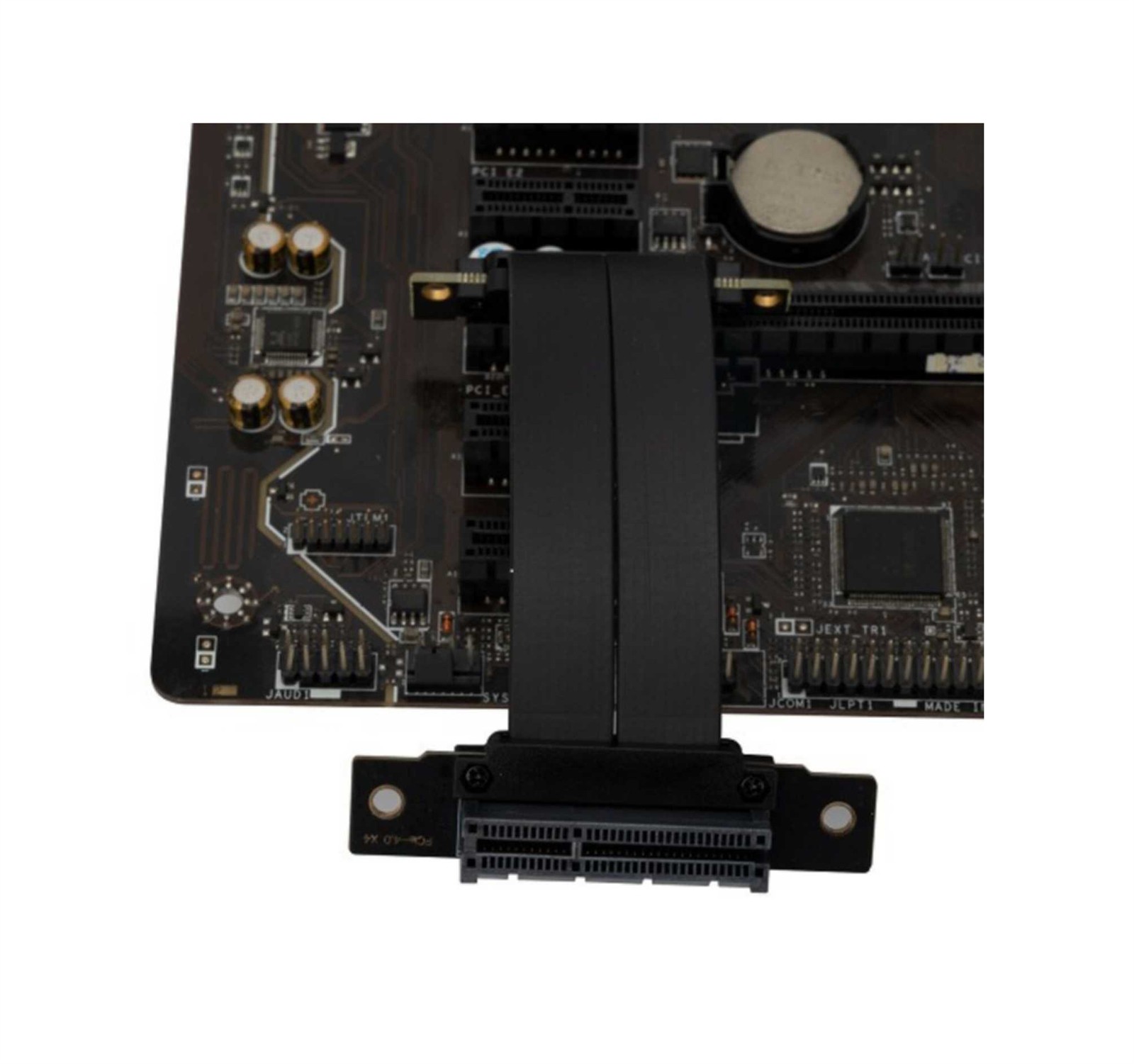

PCIE 3.0 X4 Extension Cable

Note: Custom lengths (5-30cm), extended temperature range, and industrial-grade shielding available.

1. PCIe 3.0 x4 Performance with 32 Gbps Total Bandwidth
Supports 8 GT/s per lane with x4 electrical and mechanical configuration - delivering 32 Gbps total bandwidth. PCI-SIG compliant, providing reliable high-speed connectivity for NVMe SSDs, network cards, capture cards, and expansion chassis.

2. Dual Cable Type Options for Installation Flexibility
Choose from shielded twin axial with foil + braid, or 90°/180° flat flexible circuit cable types - matching your specific signal integrity and routing requirements. Flat flexible circuit is ideal for tight spaces and low-profile chassis, while twin axial offers maximum EMI protection.

3. Flexible Connector Orientation for Any Chassis Layout
Available with 90° or 180° flat flexible circuit orientation - allowing easy routing around obstacles and through narrow gaps. Standard lengths from 5cm to 30cm (or custom) provide design flexibility for server racks, compact PCs, and custom enclosures.

4. Compliant with International Standards for Global Use
Operating temperature range from 0°C to 70°C ensures reliable performance in standard indoor environments. ROHS and CE compliant - meeting international environmental and safety standards for worry-free deployment in global markets.

• Length Configuration: custom any length per your requirements
• Shielding Options: Standard dual-layer, enhanced triple-layer, or fully enclosed EMI protection
• Connector Variants: Straight, right-angle (90°), or low-profile connectors
• Mechanical Support: Card retention brackets, vertical mounting kits, vibration isolation mounts
• Environmental Features: Conformal coating, over molded strain relief, moisture-resistant jackets
• Cable Management: Integrated cable organizers, custom routing guides, bundled assemblies
• Testing & Documentation: Signal integrity validation reports, impedance matching certificates

High-Speed Flexible Connectivity for Professional Systems

• Industrial Automation & Control: Extend NVME storage controllers, 10GbE network cards, and specialized I/O modules in industrial PCs, enabling optimal card placement in control cabinets while maintaining full x4 bandwidth for real-time data processing and machine control applications.
• Drone & Aerial Data Processing: Connect high-speed data acquisition cards and storage xpanders in portable ground station computers, allowing flexible card arrangement in field-deploy able kits without compromising the 32 GBPS bandwidth required for processing high-resolution aerial imagery and sensor data streams.
• Medical Imaging & Diagnostics: Enable configurable placement of medical interface cards, data acquisition modules, and processing accelerators in diagnostic equipment, supporting service access and thermal management while preserving x4 bandwidth for medical image transfer and patient data processing.
• Surveillance & Edge Analytics: Extend video capture cards, AI inference processors, and high-speed storage in NVRS and edge servers, optimizing card layout for thermal performance in 24/7 operation while maintaining full x4 bandwidth for multi-stream video analysis and storage operations.

1.James Chen, Automation Systems Manager, Precision Manufacturing
"Enabled optimal placement of NVME RAID cards in our industrial servers. Maintains full x4 speed while solving thermal challenges in our 24/7 production environment."

2.Lisa Wang, Drone Systems Developer, Aerial Intelligence
"Critical for our portable data processing units. The 25cm length allows flexible card positioning in compact field cases without sacrificing 32 GBPS throughput for sensor data."

3.Michael Zhang, Medical Equipment Specialist, Diagnostic Solutions
"Allows serviceable card placement in our imaging systems. Shielded design prevents interference while maintaining full bandwidth for medical data transfer."

4.Sarah Park, Security Systems Engineer, Urban Monitoring
"Solved thermal management in our edge servers. Extending capture cards with x4 cables reduced temperatures by 15°C while preserving full video processing capability."

5.David Liu, Research Coordinator, Computational Lab
"Essential for our test configurations. The x4 extension maintains full bandwidth for storage and network testing in flexible rack setups."

• Payment method: Credit card or T/T (optional for large amounts). Western Union PayPal
• T/T payment generally supports 100% advance payment.
• Lead time: Normally in 5-10 working days after payment received.
• Sample policy: Samples are always available for each model for standard products.
• Samples can be ready in 3-5 working days once payment received.
• Shipping port: Shenzhen, China.
